How to Enable HTTP/2

LiteSpeed Web Server has supported HTTP/2 out of the box since Enterprise Version 5.0. HTTP/2 and SPDY are enabled by default for SSL listeners.

Some things to keep in mind:

  • If using a front-end SSL proxy server, enabling SPDY or HTTP/2 on LiteSpeed Web Server will have no effect, as front-end SSL proxies are not capable of forwarding SPDY and HTTP/2 requests.
  • HTTP/2 requires OpenSSL 1.0.2 as minimum. OpenSSL versions less than 1.0.2 will force HTTP/2 connections to HTTP/1. However, LiteSpeed Enterprise Web Server is staticly linked with latest OpenSSL 1.0.2 release and does not depend on the OpenSSL version installed in the system.
  • HTTP/2 should work out of box for all HTTPS sites with LiteSpeed. Although HTTP/2 specification does not require TLS, TLS is required by browser implementations.

You can enable HTTP/2 with the SpdyEnabled directive in the httpd.conf configuration file, or via the WebAdmin Console.

In httpd.conf, use the SpdyEnabled http2 directive to enable HTTP/2, like so:

<IfModule LiteSpeed>
SpdyEnabled http2

Other valid parameters are spdy2, spdy3, http3 and off.

All protocols are enabled by default. As such, if you wish to use SPDY, HTTP/2, and HTTP/3, there is no need for a SpdyEnabled directive at all.

When you use this directive to explicitly enable one or more protocols, anything not selected will be disabled. For example, SpdyEnabled http2 will enable HTTP/2, while SPDY and HTTP/3 will be disabled.

In the WebAdmin Console, you can find the Enable SPDY/HTTP2/HTTP3 option in the SSL tab for both Listeners and Virtual Hosts. Select the HTTP/2 option to enable HTTP/2.

How to check if HTTP/2 is enabled?

Though you can use the third party web tools to check, the most common and easy way to check is through browser's developer tools. h2 and http/2 mean HTTP/2 has been enabled for your server.

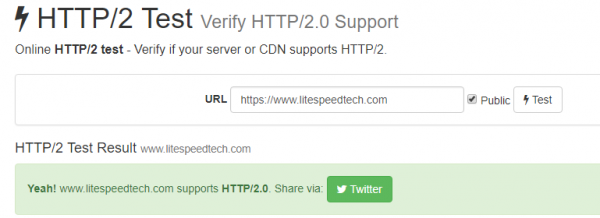

If you use third-party web tools, it could show as the following:
